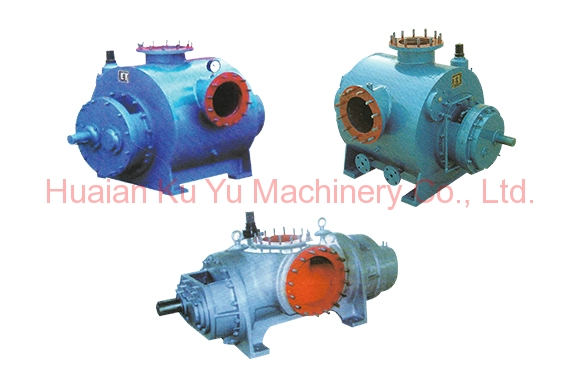

2LB and the new model 2GC screw pump is non sealed type with strong horizontal self-priming ability of the screw rotor of double suction pump volume, it has been widely used in petroleum, chemical, shipbuilding, metallurgy, electric power, oil, food and other departments. The pump is used to transport oil, all kinds of oil, fuel and other chemical particles containing trace the liquid food industry, but also transport oil, the viscosity of the liquid chemical, food industry, but also transport oil, the viscosity of the crude oil, such as residue, but must be on the oil is heated, the temperature of medium is generally not more than 80 DEG C, special requirements can reach 180 DEG C, the viscosity up to 10000mm2/S., please refer to the performance table, if there are special requirements, stating the order to the manufacturer.

The conveying medium has no agitation, no pulsation, stable transportation, good self suction performance, strong scavenging capacity, simple structure, long service life and transporting non lubricating medium. The biggest characteristic is that it can transport gasoline and other volatile oil at high temperature season

2GC, 2LB type double screw pump according to the screw and the pump body material is divided into four types:
Type 2GC1,2LB1: main, passive screw for integral steel screw, general conveying lubricating oil, diesel oil, residual oil and so on.
Type 2GC2,2LB2: main, passive screw steel core copper screw combination type, mainly used for delivery of gasoline, kerosene, naphtha and other volatile oils.
Type 2GC3,2LB3: main, passive screw steel core stainless steel screw combination type, used for transporting aviation kerosene and other general corrosive medium.
Type 2GC4,2LB4: main, passive screw steel core stainless steel screw combined, the casting parts are cast stainless steel or stainless steel plate welding type, mainly used to transport corrosive medium and liquid food.
Model for example:
2LB1 and 2GC1 or 2LB2-300-J
2LB and 2GC- double screw pump
(1) - main, passive screw for integral steel screw
(2) - said the main, passive screw for integral steel screw
300- said m3/h pump rated flow
J- said the pump seal mechanical seal, no label for rubber oil seal

The structure of the pump by the pump body, the main passive, screw, shaft seal, bearing frame device, synchronous gear and safety valves and other components.
The main pump, driven screw central no thread, the thread of the left and right sides of rectangular surface to the opposite direction, and the main pump body, between the main and the driven screw, the driven screw has certain gap between the requirements, to ensure the self-priming performance and main pump, driven screw meshing rotation.
Pump working principle: start a prime mover driven by coupling the active screw, through a pair of synchronous gears, and passive screw generates meshing rotation, the pump cavity suction vacuum pump cavity, medium input ends, in the main, driven screw under the action of the medium suction pump central export output.
Working principle: safety valve safety valve installed on the side of the pump body, the opening pressure (i.e. pressure off) 1.05-1.1 times the rated working pressure of the pump, when the pump working pressure exceeds this value, the safety valve will automatically rise to the high pressure chamber and the pump inlet communicated with each other, forming internal generation circuit circulating pump, the pressure will not rise, will not have to overload the pump. When the pressure is lower than the output line off the pressure, the safety valve will be reset, the pump will continue to work normally.

The flow of 12m3/h (including 12m3/h) double screw pump safety valve not following, according to the requirements of users, can be configured in the oil pipeline.
